How a Packet Travels Through The Network (IP and MAC Addresses)

One of the most frequently asked questions I get from my computer networking students is what happens, in terms of IP addresses and MAC addresses, in the layer 2 and layer 3 header portions of the packet as the data travels through the network, particularly if the data is traveling from one network to a completely different network

Let's take a look as we use a simple PING request from one computer to another computer.  Two computers are on two different networks separated by a router.  Each computer is connected to a switch in its respective network.  The example below will assume that ARP has already done its job, and the ARP tables on all devices have been populated.  The purpose of this example is to simply show how the IP and MAC addresses appear in the packets as the PING request and replies travel across the network.

Visit My Amazon Affiliate Link for Deals on WiFi Routers

The Network:

PC0 in the first network has an IP address of 192.168.1.100, and a MAC address of 09D4.  The default gateway for PC0 is 192.168.1.1, with a MAC address of 7B9B.

Laptop2 in the second network has an IP address of 10.10.1.102 and a MAC address of 0BD6.  The default gateway for Laptop2 is 10.10.1.1 with a MAC address of 295D.

This article will explain how the destination and source IP address and MAC change as the PING packet travels from one computer to the other and then returns with the PING reply.  Again - the example below will assume that ARP has already done its job at each step, and the ARP tables on all devices have been correctly populated.

Note: The MAC addresses in this example were truncated to the last 4 hexadecimal characters (16 bits) for brevity.

Using the network diagram above, let's go through the steps of how the destination and source IP addresses and MAC addresses change as a PING packet travels from PC0 to Laptop2 and then returns to PC0 with the PING reply:

The Packet Journey:

PING Request Path:

From PC0 to LAN1 Switch:

·         Source IP address: 192.168.1.100 (PC0's IP address)

·         Source MAC address: 09D4 (PC0's MAC address)

·         Destination IP address: 10.10.1.102 (IP address of Laptop2)

·      Destination MAC address: Since the destination IP address is in a different network, PC0 will send the packet to its default gateway 192.168.1.1 (MAC Address 7B9B), which is the router.



From LAN1 Switch to Router:

·         Source IP address: 192.168.1.100 (unchanged)

·         Source MAC address: 09D4 (unchanged)

·         Destination IP address: 10.10.1.102 (unchanged)

·         Destination MAC address: 7B9B (MAC address of the router's LAN1 interface).



From Router to LAN2 Switch:

·         Source IP address: 192.168.1.100 (unchanged)

·         Source MAC address: 295D (MAC address of the router's LAN2 interface)

·         Destination IP address: 10.10.1.102 (unchanged)

·     Destination MAC address: Since the destination IP address is within the same network as Laptop2, the router will perform an ARP request to find the MAC address corresponding to the IP address of Laptop2.  The ARP reply will return a MAC address of 0BD6.



From LAN2 Switch to Laptop2:

·         Source IP address: 192.168.1.100 (unchanged)

·         Source MAC address: 295D (MAC address of the router's LAN2 interface) (unchanged)

·         Destination IP address: 10.10.1.102 (unchanged)

·         Destination MAC address: 0BD6 (MAC address of Laptop2).

·         The PING request packet has now reached Laptop2. Laptop2 processes the packet and generates a reply.



PING Reply Path:

From Laptop2 to LAN2 Switch:

·         Source IP address: 10.10.1.102 (Laptop2's IP address)

·         Source MAC address: 0BD6 (Laptop2's MAC address)

·         Destination IP address: 192.168.1.100 (IP address of PC0)

·         Destination MAC address: Since the destination IP address is in a different network, Laptop2 will send the packet to its default gateway, 10.10.1.1 (MAC Address 295D) which is the router.



From LAN2 Switch to Router:

·         Source IP address: 10.10.1.102 (unchanged)

·         Source MAC address: 0BD6 (Laptop2's MAC address) (unchanged)

·         Destination IP address: 192.168.1.100 (unchanged)

·         Destination MAC address: 295D (MAC address of the router's LAN2 interface).



From Router to LAN1 Switch:

·         Source IP address: 10.10.1.102 (unchanged)

·         Source MAC address: 7B9B (MAC address of the router's LAN1 interface)

·         Destination IP address: 192.168.1.100 (unchanged)

·         Destination MAC address: Since the destination IP address is within the same network as PC0, the router will perform an ARP request to find the MAC address corresponding to the IP address of PC0.  The ARP reply will return a MAC address of 09D4.



From LAN1 Switch to PC0:

·         Source IP address: 10.10.1.102 (unchanged)

·         Source MAC address: 7B9B (MAC address of the router's LAN1 interface) (unchanged)

·         Destination IP address: 192.168.1.100 (unchanged)

·         Destination MAC address: 09D4 (MAC address of PC0).

·         The PING reply packet has now reached PC0.



In summary, as the PING packet travels from PC0 to Laptop2 and then back to PC0, the source and destination IP addresses remain the same, but the source and destination MAC addresses change at each hop as the packet passes through switches and the router.

Memory Aid:  Layer 3 (IP Address) is end-to-end and stays the same in the packet throughout the journey.  Layer 2 (MAC Address) is hop -to-hop and gets stripped out of the packet at each hop and the new Layer 2 information is added.

Video:  Practical Networking YouTube Channel

Bring Your Own Device (BYOD): Policies, Risks, and Best Practices

The concept of Bring Your Own Device (BYOD) has gained significant traction across industries due to its potential to enhance workforce flexibility and productivity. BYOD entails enabling employees to utilize their personal devices, spanning smartphones, laptops, and tablets, for professional tasks. Despite its allure, BYOD introduces a spectrum of challenges and risks that organizations must contend with. While it grants employees the freedom to work remotely and access company resources conveniently, it also raises concerns regarding data security, compliance, and device management. Throughout this article, we will delve into the multifaceted benefits and risks associated with BYOD, examining how organizations can effectively navigate this evolving landscape. Additionally, we will provide insights into the essential steps required to implement robust BYOD policies and adopt security best practices, ensuring that organizations can leverage the benefits of BYOD while safeguarding sensitive data and maintaining compliance with regulatory standards.

Shop Laptops at my Amazon Affiliate Link!

Understanding the Benefits of BYOD

BYOD offers several compelling benefits for both employees and employers. It fosters flexibility by enabling employees to work from anywhere, anytime, using familiar devices. This flexibility can enhance productivity and work-life balance. Moreover, BYOD can result in cost savings for employers by reducing the need for purchasing and maintaining devices. Additionally, it can boost employee satisfaction and attract top talent by offering autonomy and the ability to choose devices that suit individual preferences and workflows.

• Flexibility and Productivity: BYOD allows employees to work from anywhere, anytime, using devices they are already familiar with. This flexibility can lead to increased productivity as employees can respond to work-related tasks more promptly, even outside traditional office hours.
• Cost Savings: Implementing BYOD policies can result in cost savings for organizations, as they no longer need to purchase and maintain as many devices for their employees. This can be particularly beneficial for startups and small businesses with limited budgets.
• Employee Satisfaction: Allowing employees to use their preferred devices for work can boost morale and satisfaction. Employees appreciate the freedom to choose devices that suit their preferences and workflow, leading to higher levels of engagement and job satisfaction.
• Attracting Talent: Offering BYOD options can make an organization more attractive to potential employees, especially in competitive industries where top talent is in high demand. BYOD demonstrates a modern and forward-thinking approach to workplace technology, which can help organizations stand out in the job market.

Examining the Risks of BYOD

Despite its benefits, BYOD also introduces several risks and challenges for organizations, such as security vulnerabilities due to the use of personal devices, potential data breaches, compliance complexities with industry regulations, and the need for effective device management. Balancing the advantages of increased flexibility and productivity with the need for stringent security measures and policy enforcement is crucial for successful BYOD implementation in modern workplaces.

• Security Concerns: Personal devices may not have the same level of security controls as corporate devices, making them more vulnerable to malware, hacking, and unauthorized access. This poses a significant risk to sensitive corporate data, especially in regulated industries such as healthcare and finance.


• Data Privacy Issues: BYOD blurs the line between personal and professional data, raising concerns about data privacy and confidentiality. Organizations must implement robust data protection measures to ensure that sensitive information is adequately safeguarded on employee-owned devices.


• Compliance Challenges: Regulated industries are subject to strict compliance regulations, such as HIPAA (Health Insurance Portability and Accountability Act) and GDPR (General Data Protection Regulation). BYOD introduces complexities in ensuring compliance with these regulations, as personal devices may not meet the necessary security standards.


• Support and Maintenance: Supporting a diverse range of devices and operating systems can strain IT resources and increase support costs. Organizations must establish clear guidelines for device compatibility and provide adequate technical support to employees using BYOD.

Implementing BYOD Policies and Security Best Practices

To mitigate the risks associated with BYOD and maximize its benefits, organizations should follow these key steps when implementing BYOD policies and security best practices: develop comprehensive BYOD policies outlining acceptable use guidelines, educate employees on security measures, deploy Mobile Device Management solutions for enforcing security policies, conduct regular security audits, ensure compliance with industry regulations, and establish incident response plans to address security incidents promptly and effectively.

• Develop a Comprehensive BYOD Policy: Start by drafting a comprehensive BYOD policy that outlines the rights and responsibilities of both employees and the organization. Clearly define acceptable use guidelines, device eligibility criteria, security requirements, and consequences for policy violations.


• Educate Employees: Provide thorough training and education to employees on the BYOD policy, including best practices for securing their devices and handling sensitive information. Emphasize the importance of password protection, encryption, and regular software updates to mitigate security risks.

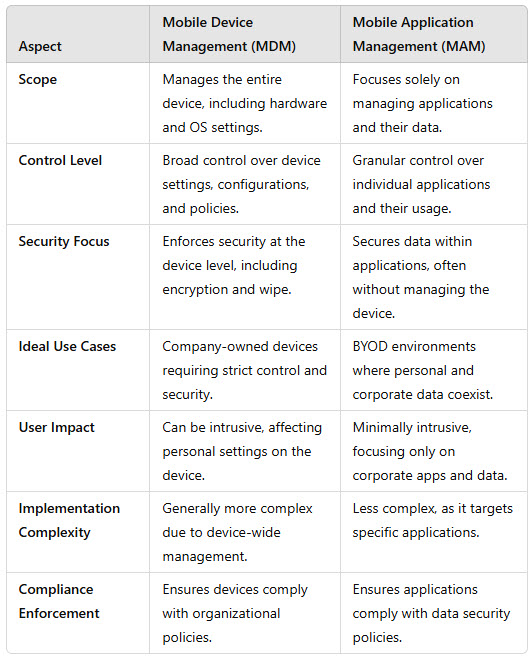

• Implement Mobile Device Management (MDM) Solutions: Deploy MDM solutions to enforce security policies on employee-owned devices. MDM software enables organizations to remotely monitor and manage devices, enforce encryption, and implement security controls such as remote wipe capabilities in case of loss or theft.


• Segmentation and Containerization: Implement network segmentation and containerization to separate corporate data from personal data on employee-owned devices. By isolating corporate applications and data within secure containers, organizations can reduce the risk of data leakage and unauthorized access.


• Regular Security Audits and Assessments: Conduct regular security audits and risk assessments to identify vulnerabilities and weaknesses in the BYOD environment. Proactively address any security issues and update security measures to stay ahead of evolving threats.


• Stay Compliant: Ensure that BYOD policies and security measures align with relevant industry regulations and standards, such as HIPAA, GDPR, and PCI-DSS. Regularly review and update policies to maintain compliance with changing regulatory requirements.


• Establish Incident Response Plans: Develop and implement incident response plans to address security incidents and data breaches involving BYOD devices. Define clear procedures for reporting incidents, conducting investigations, and mitigating the impact of security breaches.

By following these steps and implementing robust BYOD policies and security best practices, organizations can harness the benefits of BYOD while effectively managing the associated risks. With careful planning, education, and investment in security technologies, organizations can create a secure and productive BYOD environment that empowers employees and drives business success.

For More Information:

• NIST 800-142, Rev2: Guidelines for Managing the Security of Mobile Devices in the Enterprise (NIST) https://csrc.nist.gov/pubs/sp/800/124/r2/final
• NIST 800-171, Protecting Controlled Unclassified Information… (NIST) https://csrc.nist.gov/pubs/sp/800/171/r2/upd1/final
• CIS Controls Mobile Companion Guide (CIS) https://www.cisecurity.org/insights/white-papers/cis-controls-mobile-companion-guide-2
• BYOD Policies using ISO 27001 Controls(Advisera) https://advisera.com/27001academy/blog/2015/09/07/how-to-write-an-easy-to-use-byod-policy-compliant-with-iso-27001/
• NIST SP 800-66r2, Implementing the HIPAA Security Rule: A Cybersecurity Resource Guide (NIST) https://csrc.nist.gov/pubs/sp/800/66/r2/final

SMB, DNS, TFTP, and SNMP Protocols: What They Are and Common Security Practices

I was recently asked to give a brief training presentation on some commonly exploited networking protocols: SMB, DNS, TFTP, and SNMP. Small to medium-sized businesses (SMB) leverage these protocols for efficient data exchange and network management. I wrote this article as more of a primer on the essence of each protocol, basic configuration items, and a brief description of common attacks and protections of each.  It is important to understand their roles and significance and to learn essential security practices tailored for these protocols. Let's explore common threats and discover proactive measures to fortify your network, stay ahead in the realm of cybersecurity by grasping the intricacies of SMB, DNS, TFTP, and SNMP, and ensuring your business operates seamlessly while safeguarding against potential risks.

SMB (Server Message Block):

Description:

SMB is a network file sharing protocol. It allows applications to read and write to files and request services from server programs in a computer network.  The Server Message Block (SMB) protocol is primarily used for file and printer sharing between devices in a network. Configuring SMB involves setting up the necessary parameters on both the server (which shares the resources) and the clients (which access those shared resources).

Configuration:

• On the Server (File Server):
• Enable SMB: Ensure that the SMB service is enabled on the server. This can usually be done through the server's operating system settings.
• Share Resources: Identify the directories or drives that you want to share with other users on the network. Set up sharing permissions for these resources.
• Configure Access Control: Specify which users or groups have access to the shared resources. Define whether users have read-only or read-write permissions.
• Authentication Settings: Configure authentication settings, including the use of usernames and passwords for accessing shared resources. Consider using strong authentication methods.
• Encryption (Optional): Implement SMB encryption to secure data in transit between the server and clients. This helps protect sensitive information from eavesdropping.


• On the Clients:
• Network Discovery:  Ensure that network discovery is enabled on the client machines. This allows them to discover and connect to other devices sharing resources via SMB.


• Map Network Drives:  Map network drives on the client machines to access the shared resources easily. This involves assigning drive letters to the shared folders on the server.


• Provide Credentials:  When connecting to a shared resource, users may need to provide valid credentials (username and password) if authentication is required by the server.


• Workgroup or Domain Settings:  Configure the client machines to be part of the same workgroup or domain as the server. This ensures seamless communication and resource access.


• Firewall Settings:  Adjust firewall settings on both the server and clients to allow SMB traffic. Ensure that the necessary ports are open for SMB communication.


• SMB Version (Optional):  Choose the appropriate SMB version based on compatibility and security requirements. Modern systems typically support SMBv2 or SMBv3.

Common Attacks:

• SMB Relay Attacks: Attackers intercept and relay SMB messages to gain unauthorized access to a target system.


• SMB Brute Force Attacks: Repeated login attempts using various username and password combinations to gain access to the system.

Protection:

• Use Strong Authentication: Implement strong, complex passwords and consider two-factor authentication.


• Encryption: Use SMB encryption to protect data in transit.


• Regular Updates: Keep systems and software updated to patch known vulnerabilities.

DNS (Domain Name System):

Description:

DNS translates domain names into IP addresses, allowing users to access websites using human-readable names.  DNS configurations may vary based on the DNS server software used (e.g., Microsoft DNS, BIND, Unbound) and the specific requirements of the network or organization. It's crucial to refer to the documentation of the chosen DNS server software for detailed and accurate configuration instructions.

Configuration:

Configuring the Domain Name System (DNS) involves setting up and managing the domain name resolution process, allowing users to access resources on the internet using human-readable domain names. Here's a brief overview of how DNS is configured:

• DNS Server Installation:  Set up DNS server software on a designated server. This can be done using built-in DNS services provided by operating systems like Microsoft Windows Server, BIND (Berkeley Internet Name Domain) for Linux, or other DNS server software.


• Zone Configuration:  Define DNS zones, which are administrative units for managing domain names. There are different types of zones, such as forward lookup zones for translating names to IP addresses and reverse lookup zones for translating IP addresses to names.


• Create DNS Records:  Populate the DNS server with resource records (RR) that map domain names to IP addresses. Common types of DNS records include:
• A Record: Maps a domain to an IPv4 address.
• AAAA Record: Maps a domain to an IPv6 address.
• CNAME Record: Alias of one domain to another.
• MX Record: Specifies mail servers for the domain.
• NS Record: Identifies authoritative DNS servers for the domain.


• Name Server Configuration:  Specify authoritative name servers for the domain. This information is provided to domain registrars during domain registration.


• Forwarders (Optional):  Configure DNS forwarders if the DNS server is not resolving queries directly but relies on other DNS servers to do so. This is common in enterprise environments.


• DNS Security (Optional):  Implement DNS Security Extensions (DNSSEC) to enhance the security of the DNS infrastructure. DNSSEC adds cryptographic signatures to DNS data to ensure data integrity and authenticity.


• Access Control:  Set up access control lists (ACLs) to control which devices or networks are allowed to query the DNS server. This helps prevent unauthorized access and potential abuse.


• Logging and Monitoring:  Enable logging and monitoring features to track DNS queries, responses, and potential issues. Regularly review logs for security and performance analysis.


• Testing and Validation:  Conduct tests to ensure the proper functioning of the DNS server. Use tools like nslookup or dig to verify that DNS resolution is working as expected.


• Regular Maintenance:  Schedule regular maintenance tasks, such as updating DNS records, reviewing configurations, and applying software updates to address security vulnerabilities.

Common Attacks:

• DNS Spoofing: Redirecting DNS queries to malicious sites.
• DNS Cache Poisoning: Injecting false information into DNS caches.

Protection:

• DNS Security Extensions (DNSSEC): Ensures the integrity and authenticity of DNS data.
• Use Secure DNS Providers: Choose DNS providers that offer security features.
• Regular Audits: Periodically audit DNS configurations for vulnerabilities.

TFTP (Trivial File Transfer Protocol):

Description:

Trivial File Transfer Protocol (TFTP) is a simple, lightweight protocol used for transferring files between devices on a network. It operates on UDP (User Datagram Protocol) and is commonly used for tasks like firmware upgrades and initial system configurations.  It's important to note that TFTP is a simple and fast file transfer protocol but lacks advanced features such as authentication and encryption. When security is a concern, consider using alternative protocols like FTPS (FTP Secure) or SFTP (SSH File Transfer Protocol) that provide stronger security mechanisms.

Configuration:

• TFTP Server Installation: Install TFTP server software on a designated server or device. Several TFTP server implementations are available, such as Tftpd64 for Windows or tftpd-hpa for Linux.
• Specify the TFTP Root Directory:  Define the root directory where TFTP will look for files to serve. This directory should contain the files intended for transfer.
• Configure Permissions:  Set appropriate permissions on the TFTP root directory to ensure that the TFTP server has read access to the files it needs to serve.
• IP Address Binding:  Specify the IP address to which the TFTP server should bind. This determines the network interface through which the server will communicate.
• UDP Port Configuration:  TFTP typically uses UDP port 69. Ensure that this port is open and available for TFTP communication. Adjust firewall settings as needed.
• Access Controls (Optional):  Some TFTP servers allow you to configure access controls, restricting TFTP access to specific IP addresses or network ranges. This helps enhance security.
• Logging and Monitoring:  Enable logging features to monitor TFTP activity. Logs can be useful for troubleshooting and security analysis.
• Testing:  Test the TFTP server by attempting to transfer files to and from client devices. Use TFTP client tools to ensure that the server is responding correctly.
• Regular Maintenance:  Regularly review TFTP configurations, update software as needed, and perform maintenance tasks to address any security vulnerabilities.

Common Attacks:

• TFTP Exploits: Attackers may exploit weak authentication in TFTP to gain unauthorized access.
• Packet Capture: Sniffing TFTP traffic to intercept sensitive information.

 Protection:

• Security Considerations:  TFTP, by default, lacks built-in security features such as authentication or encryption. To enhance security, consider using TFTP ONLY in a trusted network environment or implementing additional security measures like VPNs for encrypted communication.
• Access Controls: Restrict TFTP access to authorized users and devices.
• Encryption: Use VPNs or secure channels to encrypt TFTP traffic.
• Regular Monitoring: Monitor TFTP activity for anomalies.

SNMP (Simple Network Management Protocol):

Description:

SNMP is a widely used protocol for managing and monitoring network devices, such as routers, switches, servers, and printers. It allows administrators to collect information about the performance and health of network devices and to manage their configurations remotely.

Configuration:

Configuring SNMP involves setting up both the SNMP agent on the managed device (server, router, etc.) and the SNMP manager, which is the system that collects and analyzes the SNMP information. SNMP configuration details may vary depending on the specific SNMP agent and manager software in use. Always refer to the documentation provided by the vendors for accurate and detailed configuration instructions.  Here's a brief overview:

• On the SNMP Manager:
• SNMP Manager Software:  Install SNMP manager software on the system that will be monitoring the managed devices. Popular SNMP managers include Nagios, SolarWinds, and Paessler PRTG.
• Configure SNMP Manager:  Set up the SNMP manager with the necessary parameters, including the IP addresses or hostnames of the managed devices, SNMP community strings, and SNMP version.
• Polling Intervals:  Define how frequently the SNMP manager will poll the managed devices for information. This interval can be adjusted based on the monitoring requirements and network conditions.
• Trap Receiver Configuration (Optional):  If SNMP traps are configured on the managed devices, set up the SNMP manager to act as a trap receiver. This allows the manager to receive and process trap messages.
• Logging and Alerts:  Configure logging and alerting features on the SNMP manager to be notified of critical events or performance issues detected on the managed devices.
• Testing:  Test the SNMP configuration by querying the managed devices for information and verifying that traps are received correctly.
• Regular Maintenance:  Periodically review and update SNMP configurations, including community strings and access controls. Keep SNMP manager software up to date to address any security vulnerabilities.


• On the Managed Device (SNMP Agent):
• SNMP Agent Installation: Ensure that the SNMP agent is installed on the managed device. Many devices come with SNMP support pre-installed, and it might need to be enabled or configured.
• Community Strings: Define SNMP community strings, which act as passwords that allow SNMP managers to access information on the managed device. There are two types:
• Read-Only (RO): Permits querying for information.
• Read-Write (RW): Permits querying and modifying configurations.
• SNMP Versions:  Choose the SNMP version to use. SNMPv2c is common for basic operations, while SNMPv3 offers enhanced security features such as authentication and encryption.
• Access Control Lists (ACLs):  Set up ACLs to control which SNMP managers are allowed to query or manage the device. This adds a layer of security to SNMP communication.
• Trap Configuration (Optional):  Configure SNMP traps to notify the SNMP manager about specific events, such as critical errors or warnings. Traps provide a way for devices to proactively inform the manager about important occurrences.

Common Attacks:

• SNMP Brute Force Attacks: Repeated login attempts to guess the SNMP community strings.
• Information Disclosure: Unauthorized access to sensitive information via SNMP queries.

Protection:

• Security Considerations:  If using SNMPv3, configure authentication and encryption settings to enhance the security of SNMP communication between the manager and the managed devices.
• Strong Community Strings: Use complex community strings and consider using SNMPv3 with authentication and encryption.
• Access Control: Restrict SNMP access to specific IP addresses.
• Regular Audits: Periodically review and update SNMP configurations.

General Tips for Securing These Protocols:

• Firewalls and Intrusion Prevention Systems (IPS): Implement firewalls and IPS to monitor and control network traffic.
• User Education: Educate users on security best practices, such as recognizing phishing attempts and using strong passwords.
• Regular Backups: Regularly back up critical data to mitigate the impact of ransomware attacks.
• Incident Response Plan: Develop and regularly update an incident response plan to address security incidents promptly.

Understanding IMSI Catchers (Stingrays) and Safeguarding Your Mobile Privacy

In today's dynamic technological landscape, where innovation is rapid and ubiquitous, the urgent concerns about privacy and security have assumed a heightened significance. Among the many challenges faced in this digital age, one particularly dangerous threat emerges in the form of IMSI Catchers, commonly referred to as "stingrays." These clandestine devices have captured attention and elicited apprehension owing to their inherent capability to undermine mobile privacy.

IMSI Catchers operate surreptitiously, posing a potential menace to the confidentiality of mobile communications. Essentially, these devices masquerade as legitimate cell towers, exploiting the fact that mobile phones consistently seek the strongest available signal. Once a mobile device unwittingly connects to the imposter tower, the IMSI Catcher gains access to sensitive information, including call details, text messages, and data usage. Furthermore, these devices can go beyond mere interception, injecting malicious software into the connected mobile device, thereby exacerbating the risk.

Understanding the intricacies of IMSI Catchers is paramount for individuals seeking to fortify their digital defenses. Awareness of their functioning mechanisms empowers users to implement effective safeguards against these covert threats. As the pursuit of privacy takes center stage in the digital realm, it becomes imperative to explore pragmatic and actionable steps to shield oneself from the potential perils posed by IMSI Catchers.

In the subsequent sections of this article, we will delve deeper into the modus operandi of IMSI Catchers, shedding light on their interception capabilities and location tracking functionalities. Furthermore, we will proffer a comprehensive guide on protective measures, offering practical insights into fortifying one's mobile privacy defenses against these surreptitious entities. By unraveling the enigma surrounding IMSI Catchers, individuals can arm themselves with the knowledge necessary to navigate the intricate intersection of technology and privacy.

Understanding IMSI Catchers:

IMSI Catchers, or Stingrays, are surveillance devices used by law enforcement agencies and, in some cases, malicious actors to intercept and track mobile phone communications. The acronym "IMSI" stands for International Mobile Subscriber Identity, which is a unique identifier associated with each mobile device. These devices mimic cell towers, tricking nearby mobile phones into connecting to them, thereby allowing the IMSI Catcher to capture sensitive information.

Video Shared From: Washington Post YouTube Channel

How IMSI Catchers Work:

Cell Tower Impersonation:

IMSI Catchers exploit the fact that mobile phones constantly search for the nearest cell tower with the strongest signal. The device mimics a legitimate cell tower, forcing nearby phones to connect to it unknowingly.

Interceptor Mode:

Once connected, the IMSI Catcher can intercept and monitor the mobile device's communications, including calls, text messages, and data usage. In some cases, it can even inject malware into the device.

Location Tracking:

By triangulating the signal strength from multiple IMSI Catchers, it becomes possible to pinpoint the exact location of a mobile device, further compromising the user's privacy.

Protecting Against IMSI Catchers:

Use Encrypted Messaging Apps:

Protect your communications by using end-to-end encrypted messaging apps like Signal or WhatsApp. These apps ensure that even if intercepted, your messages remain private.

Enable Two-Factor Authentication (2FA):

Adding an extra layer of security through 2FA helps protect your accounts from unauthorized access, even if your SMS messages are intercepted.

Regularly Update Your Operating System:

Keep your mobile device's operating system up to date. Updates often include security patches that address vulnerabilities exploited by IMSI Catchers.

Utilize Virtual Private Networks (VPNs):

VPNs encrypt your internet connection, making it harder for IMSI Catchers to intercept and analyze your data. Choose a reputable VPN service to ensure the highest level of security.

Disable Wi-Fi and Bluetooth When Not in Use:

IMSI Catchers often exploit these wireless technologies. By turning them off when not needed, you reduce the risk of being targeted.

Use IMSI Catcher Detector Apps:

There are mobile apps available that claim to detect IMSI Catchers. While not foolproof, they can provide an additional layer of awareness regarding potential threats in your vicinity.

Implement Strong Passwords:

Ensure your mobile device, as well as your online accounts, are protected by strong, unique passwords. This helps prevent unauthorized access even if other security measures fail.

Wrapping It All Up:

The concerns about privacy and security have assumed a heightened significance. Among the myriad challenges faced in this digital age, one particularly insidious threat emerges in the form of IMSI Catchers, colloquially referred to as "stingrays." These clandestine devices have captured attention and elicited apprehension owing to their inherent capability to undermine mobile privacy.

IMSI Catchers operate surreptitiously, posing a potential menace to the confidentiality of mobile communications. Essentially, these devices masquerade as legitimate cell towers, exploiting the fact that mobile phones consistently seek the strongest available signal. Once a mobile device unwittingly connects to the imposter tower, the IMSI Catcher gains access to sensitive information, including call details, text messages, and data usage. Furthermore, these devices can go beyond mere interception, injecting malicious software into the connected mobile device, thereby exacerbating the risk.

Understanding the intricacies of IMSI Catchers is paramount for individuals seeking to fortify their digital defenses. Awareness of their functioning mechanisms empowers users to implement effective safeguards against these covert threats. As the pursuit of privacy takes center stage in the digital realm, it becomes imperative to explore pragmatic and actionable steps to shield oneself from the potential perils posed by IMSI Catchers.

the purpose of this article was to delve into the IMSI Catchers, shedding light on their interception capabilities and location tracking functionalities. Consider implementing protective measures, in order to fortify one's mobile privacy defenses against these surreptitious entities. By unraveling the enigma surrounding IMSI Catchers, individuals can arm themselves with the knowledge necessary to navigate the intricate intersection of technology and privacy.

Author's note: This article was produced via automated technology and then fine-tuned and verified for accuracy.

Navigating the Cybersecurity Landscape: A Comprehensive Guide to Careers in Cybersecurity

I am frequently approached with questions about the diverse array of job opportunities within the realm of cybersecurity. As our digital landscape expands, so does the demand for skilled professionals who can navigate and safeguard it. Within the cybersecurity domain, an array of exciting and dynamic roles awaits those with a passion for technology and security.

For starters, ethical hacking and penetration testing present thrilling opportunities for individuals intrigued by the idea of proactively identifying and thwarting potential threats. Security analysts, on the other hand, play a crucial role in monitoring and responding to security incidents, ensuring the ongoing protection of organizational assets. Security consultants offer strategic guidance to businesses, tailoring bespoke solutions to fortify their cybersecurity postures.

For those with a penchant for designing and building secure systems, a role as a security architect may be the perfect fit. Incident responders are the first line of defense in the aftermath of a cyberattack, employing their skills to investigate, contain, and strategize against future incidents. Additionally, forensic analysts specialize in unraveling the intricacies of digital evidence, contributing essential insights for legal proceedings.

In essence, the cybersecurity landscape is rich with opportunities, catering to a spectrum of interests and skill sets within this ever-evolving field.  As our reliance on technology grows, so does the need for skilled professionals to safeguard our digital assets. For beginning students and adults considering a career change, venturing into the field of cybersecurity may seem like a daunting task. However, understanding the various aspects and fields within cybersecurity can pave the way for a rewarding and fulfilling career.

The Role of Cybersecurity Workers

Cybersecurity professionals play a pivotal role in protecting digital systems, networks, and data from malicious threats. Their tasks encompass a wide range of responsibilities, each crucial to maintaining the integrity and security of information. Let's explore some of the key tasks that cybersecurity workers undertake:

• Risk Assessment and Management:

Cybersecurity experts evaluate potential risks to a system or network and devise strategies to mitigate these risks. They conduct risk assessments to identify vulnerabilities and develop plans to address and manage these security concerns.

• Incident Response and Forensics:

When a security breach occurs, cybersecurity professionals are at the forefront of incident response. They investigate the nature of the breach, identify the scope of the damage, and work to contain and eradicate the threat. Digital forensics is often employed to analyze the aftermath of a security incident.

• Network Security:

Securing networks is a fundamental aspect of cybersecurity. Professionals in this field focus on implementing measures such as firewalls, intrusion detection and prevention systems, and virtual private networks (VPNs) to protect networks from unauthorized access and cyberattacks.

• Identity and Access Management:

Cybersecurity workers manage user access to digital systems and ensure that only authorized individuals can access sensitive information. This involves implementing multi-factor authentication, password policies, and other identity verification methods.

• Security Awareness Training:

Educating users about potential security threats is a critical aspect of cybersecurity. Professionals create and deliver training programs to ensure that employees are aware of best practices for maintaining a secure digital environment.

• Security Software Development:

Developing and maintaining security software is another vital task. Cybersecurity professionals may work on creating antivirus programs, encryption tools, and other software solutions to enhance overall system security.

Fields Within Cybersecurity

For beginners and career changers, understanding the diverse fields within cybersecurity is essential for making informed decisions about specialization. Here are some prominent fields within the cybersecurity landscape:

• Ethical Hacking and Penetration Testing:

Ethical hackers, also known as penetration testers, use their skills to identify vulnerabilities in systems before malicious actors can exploit them. They conduct simulated attacks to assess the effectiveness of existing security measures.

• Security Analyst:

Security analysts monitor an organization's IT infrastructure for potential security threats. They analyze logs, investigate incidents, and implement security measures to protect against cyber threats.

• Security Consultant:

Security consultants provide expert advice to organizations on developing and maintaining robust cybersecurity strategies. They assess the unique needs of a business and recommend solutions to enhance overall security posture.

• Security Architect:

Security architects design and build secure systems and networks. They work to create a comprehensive security framework that aligns with an organization's goals and objectives.

• Incident Responder:

Incident responders are the first line of defense when a security incident occurs. They investigate breaches, contain threats, and develop strategies to prevent future incidents.

• Forensic Analyst:

Forensic analysts specialize in examining digital evidence to uncover the details of a cyberattack. They play a crucial role in identifying the source of a breach and gathering evidence for legal proceedings.

• Compliance and Legal:

Professionals in this field ensure that organizations adhere to relevant cybersecurity laws and regulations. They also work on developing and implementing policies to maintain compliance.

Wrapping it All Up:

Embarking on a career in cybersecurity can be both challenging and rewarding. For beginners and career changers, understanding the multifaceted nature of cybersecurity tasks and the diverse fields within the industry is a crucial first step. As technology continues to evolve, so will the demand for skilled cybersecurity professionals. With dedication, ongoing learning, and a passion for securing digital landscapes, individuals can find a fulfilling and dynamic career in the ever-expanding realm of cybersecurity.

Disaster Recovery Testing: The Key to Ensuring Business Continuity

Previously, I wrote an article on Developing a Disaster Recovery Plan, and the importance of Disaster Recovery (DR) testing. Now that we're into the new year, many businesses are gearing up for DR testing to meet compliance and to get a head start on testing their IT security.  So, I wanted to take this opportunity to get DR plans and testing activities top of mind once again to help you prepare for the coming year.

Technology is the backbone of business operations, and the imperative for businesses to embrace disaster recovery planning is unequivocal. No longer confined to the realm of luxury, it has become an indispensable shield against the potential ramifications of unforeseen events. The pivotal role of a meticulously crafted disaster recovery plan extends beyond its mere existence; it lies in its execution and periodic testing. These facets are the linchpin differentiating between a business that can swiftly recover from disruptions and one that grapples with enduring financial losses in the aftermath.

This article serves as a resource for IT specialists and executives, offering a comprehensive exploration of disaster recovery testing. It ventures into the understanding of why testing is paramount, unraveling the intricate phases integral to this process—assessment, planning, execution, and evaluation. It emphasizes the dynamic nature of technology and underscores the need for constant adaptation in the face of evolving threats. Moreover, the article guides professionals through a spectrum of diverse tests that should be seamlessly integrated into their disaster recovery plans, ensuring a robust and resilient framework capable of withstanding the unpredictable nature of disasters in the digital age.

Importance of Disaster Recovery Testing

Disaster recovery testing serves as the crucible where an organization's resilience is forged, providing a pivotal role in the robust implementation of a comprehensive recovery plan. Beyond routine exercise, testing becomes a proactive strategy for businesses to illuminate potential weaknesses lurking in the intricate fabric of their disaster recovery plans. It acts as a diagnostic tool, enabling meticulous evaluation of recovery strategies and pinpointing vulnerabilities that might escape notice in a theoretical examination.

Moreover, the intrinsic value of regular testing extends beyond the refinement of protocols. It plays a transformative role in staff development and preparedness. Through simulated disaster scenarios, employees gain practical experience that transcends theoretical training. This hands-on exposure not only increases their awareness of the intricacies of recovery processes but also hones their skills, fostering a workforce capable of responding with precision and efficiency when confronted with actual crises.

Disaster recovery testing is a dynamic process that goes beyond a routine checklist. It's a continuous cycle of improvement, a mechanism for organizational learning, and a linchpin for ensuring business continuity in the face of the unexpected. The insights garnered from such testing not only fortify an organization's defenses but also empower its workforce, creating a culture of readiness and adaptability in the ever-evolving landscape of potential disasters.

Shared from the BE INFOSEC YouTube Channel

Phases of Disaster Recovery Testing

Planning Phase

The planning phase is the crucial first step in any disaster recovery testing initiative. It involves defining the objectives, scope, and schedule for the testing, as well as assembling the right team of IT specialists and executives who will be responsible for implementing and overseeing the testing process. During this phase, it is essential to ensure that the disaster recovery plan is up-to-date and aligns with the organization's current IT infrastructure.

Test Development Phase

In this phase, specific tests are designed to assess the effectiveness of the disaster recovery plan. The team should examine critical systems, key processes, and data repositories to identify potential vulnerabilities and develop test scenarios that are realistic and relevant to the organization's specific needs.

Test Execution Phase

The test execution phase involves putting the disaster recovery plan to the test by simulating various disaster scenarios. IT specialists and executives should meticulously execute the predetermined tests, meticulously documenting the results and evaluating the effectiveness of the plan's recovery strategies. This phase provides actionable insights for refining the disaster recovery plan and allows businesses to build resilience and confidence.

Evaluation and Reporting Phase

Upon completion of the tests, thorough evaluation and reporting are essential to identify strengths and vulnerabilities and propose improvements. This phase provides a comprehensive overview of the organization's disaster recovery capabilities and serves as a basis for an ongoing review process that ensures continuous optimization of the disaster recovery plan.

Types of Tests for Disaster Recovery Plan

Checklist Testing

Checklist testing involves verifying that all required steps and procedures within the disaster recovery plan have been addressed. By following a predefined checklist, the team can ensure that critical aspects, such as data backups, communication processes, and system validation, have been appropriately considered.

Simulation Testing

Simulation testing aims to recreate a disaster scenario as realistically as possible. It involves creating controlled environments to test system recovery times, application functionality, and the ability to maintain crucial services during a disruption. This type of testing helps identify potential bottlenecks, human errors, and data integrity issues.

System Recovery Testing

System recovery testing focuses on testing specific systems or applications individually to determine their recovery time objectives (RTOs) and recovery point objectives (RPOs). This testing allows organizations to identify any dependencies and ensure that core systems are restored within acceptable timeframes.

Full-Scale Recovery Testing

Full-scale recovery testing involves simulating a complete disaster recovery scenario, including failover and failback procedures. This test is particularly useful for assessing the ability of the entire system to recover and resume operations, including infrastructure, networks, and applications.

Communication Testing

Communication testing aims to evaluate the effectiveness of the organization's communication strategies during a disaster. It involves simulating scenarios where different communication channels and protocols are used to ensure employees, stakeholders, and customers receive timely updates and instructions.

Wrapping It All Up:

Emphasizing the cyclical nature of disaster recovery testing, its comprehensive phases act as a strategic roadmap for businesses aiming to fortify their operational continuity. Beyond a perfunctory exercise, the planning phase involves a meticulous examination of existing plans, adapting them to the evolving technological landscape. Test development encompasses crafting scenarios that mirror real-world challenges, ensuring a dynamic and responsive disaster recovery strategy.

Execution becomes the litmus test, transforming theoretical plans into tangible actions. Through simulation testing, organizations gauge the effectiveness of their response mechanisms, identifying potential gaps that might elude theoretical scrutiny. System recovery testing delves into the intricacies of data retrieval, while full-scale recovery testing provides a holistic evaluation of the entire recovery process. Communication testing ensures seamless coordination, a critical aspect often overlooked until a real crisis unfolds.

The culmination in the evaluation and reporting phase serves as a reflective period, extracting insights from test outcomes and refining the disaster recovery plan accordingly. This iterative process is pivotal in cultivating a robust and adaptive strategy that can stand resilient in the face of unforeseen events. A rigorously tested disaster recovery plan equips businesses with the agility to respond swiftly, safeguard critical data, and minimize downtime, instilling confidence in IT specialists and executives to navigate uncertainties with poise and maintain unwavering business continuity.

Disaster Recovery Planning References:

• NIST Contingency Plan Guide for Federal Information Systems
• NIST Guide for Cybersecurity Event Recovery
• NIST Cybersecurity Framework Policy Template Guide
• Ready.Gov:  IT Disaster Recovery Plan
• Ready.Gov:  Business Continuity Plan
• Ready.Gov:  Business Impact Analysis
